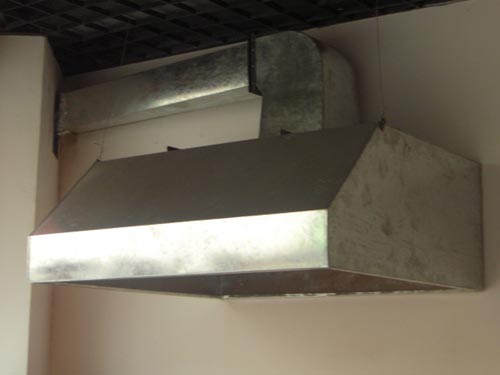

Jinan Hotel Kitchen Smoke Exhaust Hood Production Requirements:
1.排煙罩后密封板、前密封板、前頁、上滑槽和下滑槽的所有外露邊緣均有扣邊；
1. All exposed edges of the rear sealing plate, front sealing plate, front page, upper chute and lower chute of the smoke exhaust hood have buckle edges;
2.排煙罩后密封板與前密封板分段短焊，其中前密封板HL表面暴露；
2. The rear sealing plate and the front sealing plate of the smoke exhaust hood are short-welded in sections, and the HL surface of the front sealing plate is exposed;
3.排煙罩前頁與排煙罩前封板連接為分段短焊，焊接面在前封板外露前頁HL面向下，二端煙罩連接面分別向上90度；
3. The connection between the front sheet of the smoke exhaust hood and the front sealing plate of the smoke exhaust hood is short welding in sections. The welding surface is facing downward on the exposed front sheet HL of the front sealing plate, and the connection surface of the two end smoke hoods is 90 degrees upward;
4.排煙罩二端的油煙網罩側密封板和后密封板。前密封板的前頁分段短焊，包括同一前頁的前端（注：尺寸120mm）。后密封板的油槽位置為全焊和拋光；
4. The side sealing plate and rear sealing plate of the oil smoke screen cover at the two ends of the smoke exhaust hood. The front page of the front sealing plate is short-welded in sections, including the front end of the same front page (note: size 120mm). The oil groove of the rear sealing plate is fully welded and polished;
5.煙罩照明燈必須具有防水功能，導線必須具有旋轉穿線護管。
5. The smoke hood lamp must be waterproof, and the wire must have a rotating threading protection tube.
排煙罩的安裝方法:
Installation method of smoke exhaust hood:
1.現場安裝油煙網罩時，現場拼接的排煙罩后密封板到油槽處滿焊，其余部分為短焊；
1. When installing the smoke screen cover on site, the rear sealing plate of the smoke exhaust cover spliced on site shall be fully welded to the oil tank, and the rest shall be short-welded;
2.用M8鋼膨脹螺和不銹鋼大墊片用于固定油煙網罩和墻壁，膨脹螺釘外露螺紋需螺紋；
2. M8 steel expansion screw and stainless steel large gasket are used to fix the oil smoke screen cover and wall, and the exposed thread of the expansion screw needs to be threaded;
3.排煙罩前頁與地板連接件為螺釘全線或鋼絲繩加吊環螺釘，索具螺旋扣；
3. The connection between the front page of the smoke exhaust hood and the floor is the full line of screws or steel wire rope plus eyebolts and rigging turnbuckles;
4.吊裝高度:排煙罩前頁下口距地面2000mm，排煙罩后密封板至油槽底部距地面1900mm；排煙罩的吊裝精度一般為正負10mm。
4. Hoisting height: the lower opening of the front page of the smoke exhaust hood is 2000mm from the ground, and the rear sealing plate of the smoke exhaust hood to the bottom of the oil tank is 1900mm from the ground; The lifting accuracy of smoke exhaust hood is generally plus or minus 10mm.
排煙罩的養護方法：
Maintenance method of smoke exhaust hood:
1.平時不銹鋼櫥柜要避免熱鍋或熱水壺直接接觸櫥柜，這些物品較好放在鍋架上。
1. The stainless steel cabinet should avoid the hot pot or hot pot directly contacting the cabinet, and these items should be better placed on the pot rack.
2.平時注意尖銳物品不能觸摸臺面，避免廚房排煙罩造成櫥柜上有劃痕或凹痕。
2. Pay attention not to touch the table with sharp objects at ordinary times to avoid scratches or dents on the cabinet caused by the kitchen smoke hood.
3.柜門板根據不同的材料進行不同的清洗方法。
3. The cabinet door plate shall be cleaned according to different materials.
4.避免使用化學物質接觸櫥柜，對櫥柜造成損壞。
4. Avoid using chemicals to contact the cabinet and cause damage to the cabinet.
上述就是為您介紹的有關酒店廚房排煙罩的制作要求、安裝方法及日常養護方法的內容，對此還有什么不了解的，歡迎前來咨詢我們的網站
http://m.xyphw.com咨詢！
The above is about the production requirements, installation methods and daily maintenance methods of the hotel kitchen smoke exhaust hood introduced to you. If you have any questions about this, please come to our website http://m.xyphw.com consulting service
